Solis S5-GC36K-DC Three Phase Grid-Tied Inverter – 36kW

Part No: SOL-S5-GC36K-DC | Rating: 36,000W | Phases: 3

---

⚡ High-Performance Commercial Inverter

The Solis S5-GC36K-DC is a next-generation Series 5 three-phase grid-tied inverter designed for commercial and industrial solar installations. Delivering up to 98.7% efficiency and a maximum AC output of 39.6kW, this inverter ensures reliable and optimised power generation for medium to large-scale PV systems.

---

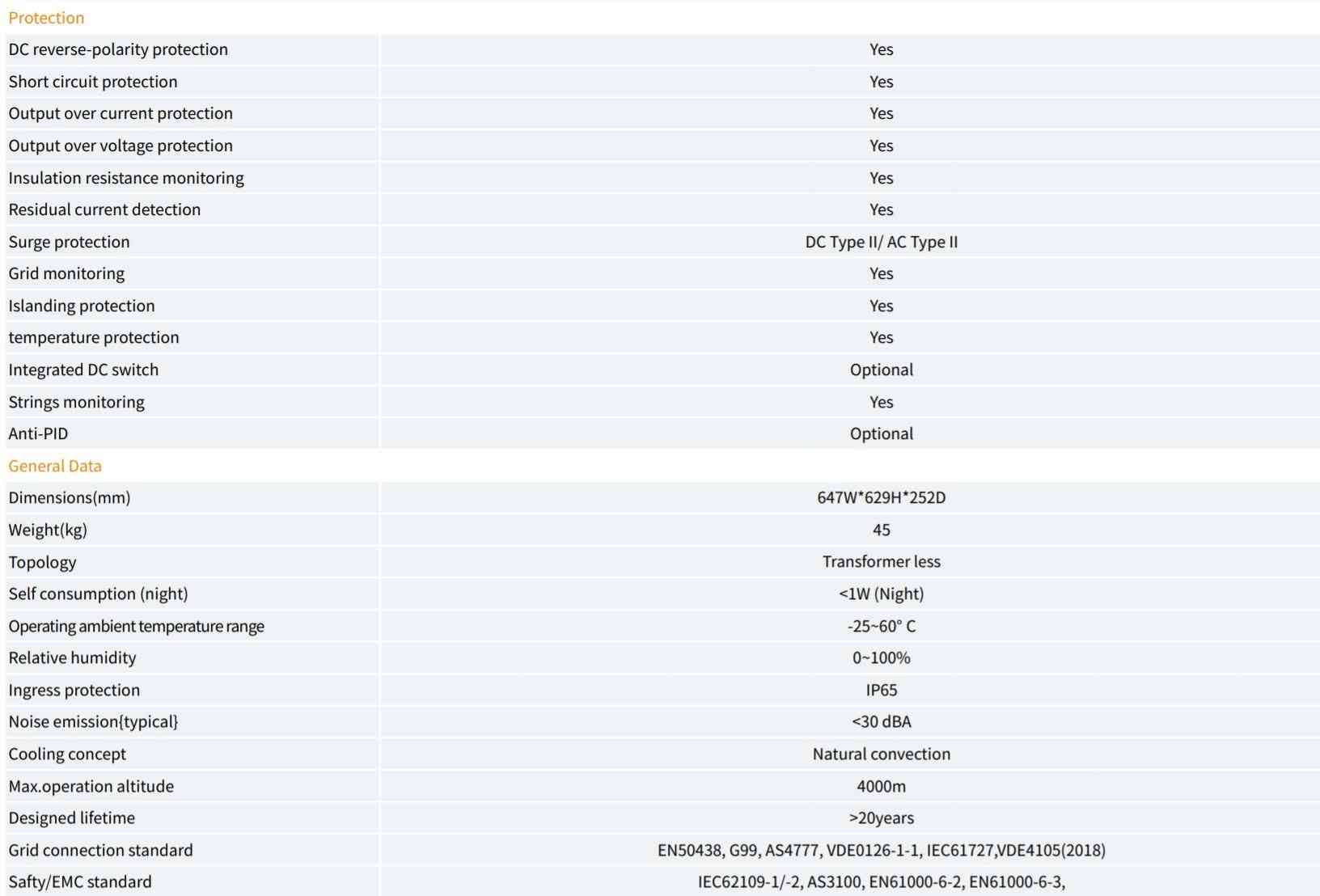

🔒 Advanced Safety Features

• Type-II surge protection on both DC and AC sides

• Integrated AFCI (DC arc-fault circuit protection)

• IP66 rating for outdoor durability in all weather conditions

• DC reverse-polarity protection to safeguard equipment

---

🧠 Intelligent Technology

• 4 MPPT design with 2 DC inputs per tracker – reducing string mismatch

• 32A input per MPPT / 16A per PV string for flexibility

• Smart I-V curve diagnosis for accurate system monitoring

• Remote monitoring & upgrades via SolisCloud platform

---

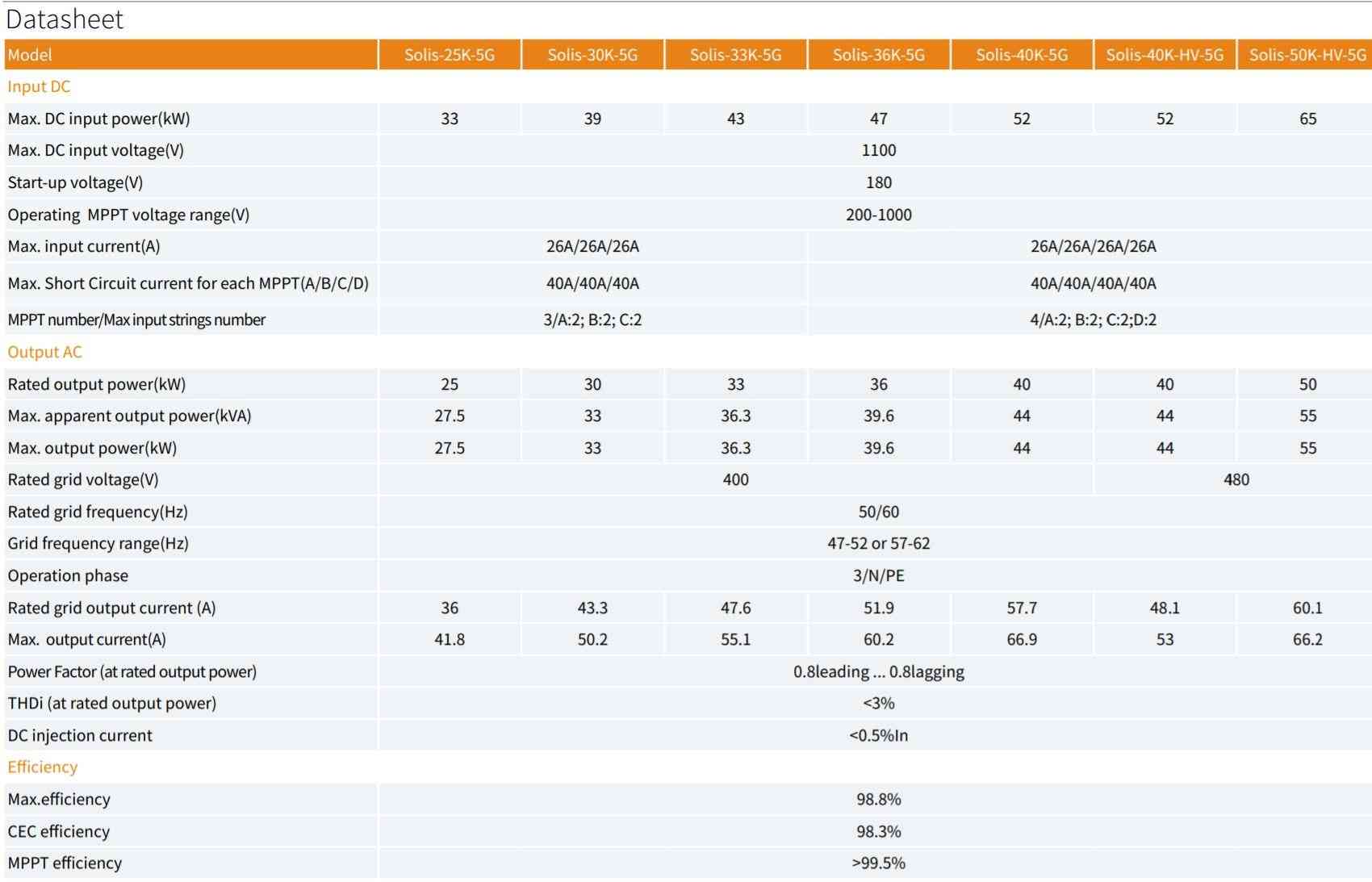

📊 Technical Specifications

• Rated Power: 36,000 W

• Max DC Power: 54,000 W

• Max AC Power (5 min): 39,600 W

• Surge AC Power (1s): 39,600 W

• Phases: 3

• Max Efficiency: 98.7% (Euro Efficiency 98.3%)

• Voltage Range (MPPT): 200–1,000 V

• DC Startup Voltage: 200 V

• DC Shutdown Voltage: 180 V

• Max Input Voltage: 1,100 V

• Max DC Current: 128 A

• Max DC Inputs: 8 (MC4 connectors, 16 included)

• MPPT Quantity: 4

• Cooling: Transformerless design

• Weight: 48 kg

• Warranty: 5 years (extendable options available)

---

✅ Why Choose the Solis S5-GC36K-DC?

• Industry-leading 98.7% efficiency for maximum ROI

• Smart string monitoring & remote management

• Safe, reliable & compliant with global standards (NRS-097-2-1 certified)

• Perfect for medium to large-scale commercial solar projects
