Solis 30kW S5 3 Phase Triple MPPT - DC | IP66
Solis 30kW S5 3 Phase Triple MPPT - DC
#2: SOL-S5-GC30K-DC
Solis S5-GC30K 30kW Three Phase Grid-Tied Inverter
The Solis S5-GC30K three-phase grid-tied inverter delivers exceptional performance and efficiency for large-scale commercial and industrial solar installations. Built with advanced MPPT technology and robust safety features, this inverter ensures maximum energy harvesting and long-term reliability.
Key Features
-
High Efficiency: Maximum efficiency up to 98.5% for superior energy conversion
-
Wide Voltage Range: Ultra-low start-up voltage of 180V and max PV input voltage of 1100V
-
3 MPPT Design: With 2 DC inputs per MPPT, reducing string mismatch and optimising output
-
Smart Monitoring: Intelligent monitoring with Smart I-V Curve Diagnosis
-
Advanced Safety:
-
Integrated AFCI (Arc-Fault Circuit Interruption)
-
Type-II surge protection for both DC & AC
-
DC reverse-polarity protection
-
-
Durable Construction: IP66-rated for indoor or outdoor installation
-
Remote Management: Register via SolisCloud for remote upgrades and system control
-
Certified Performance: SA: NRS-097-2-1 certified for compliance

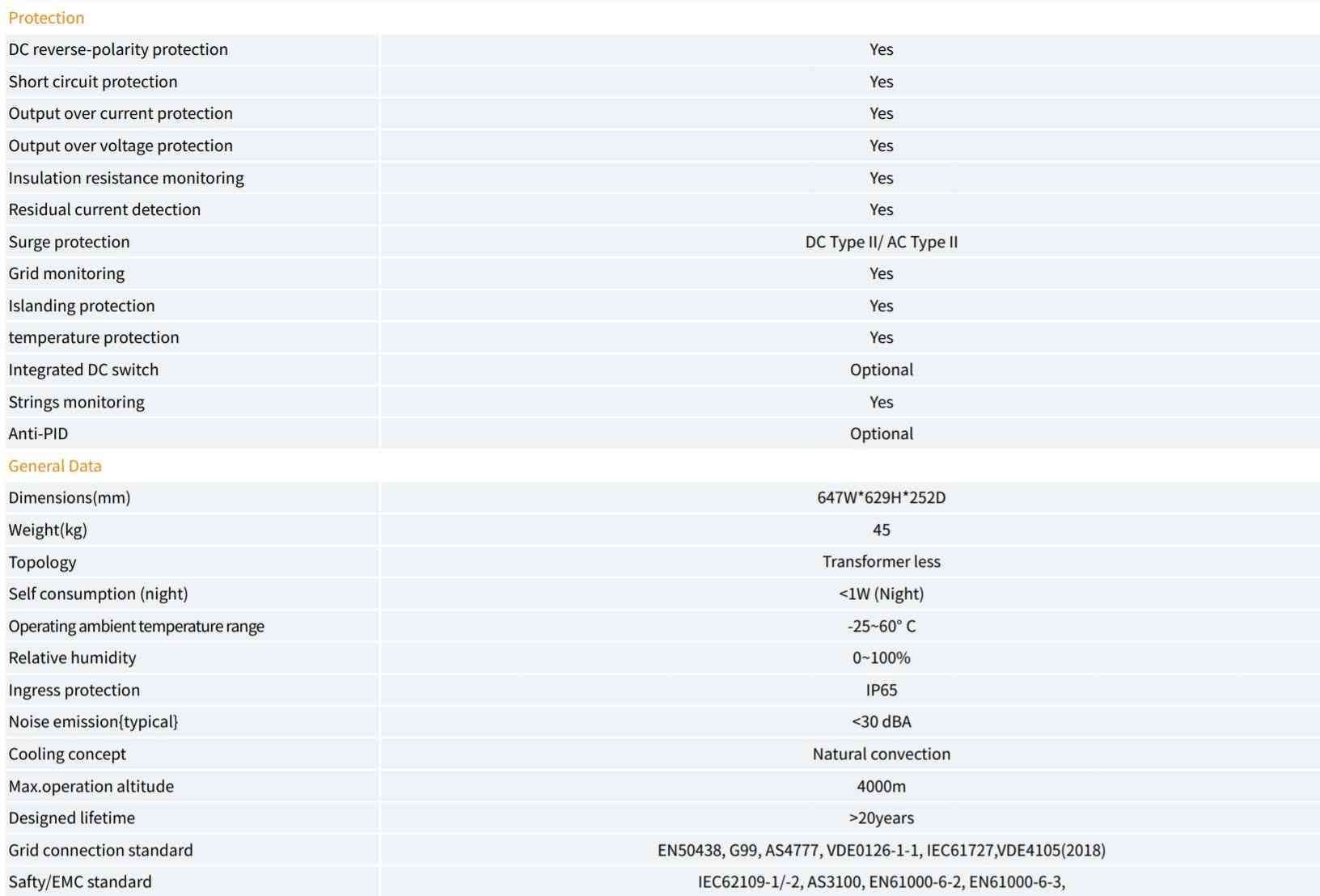

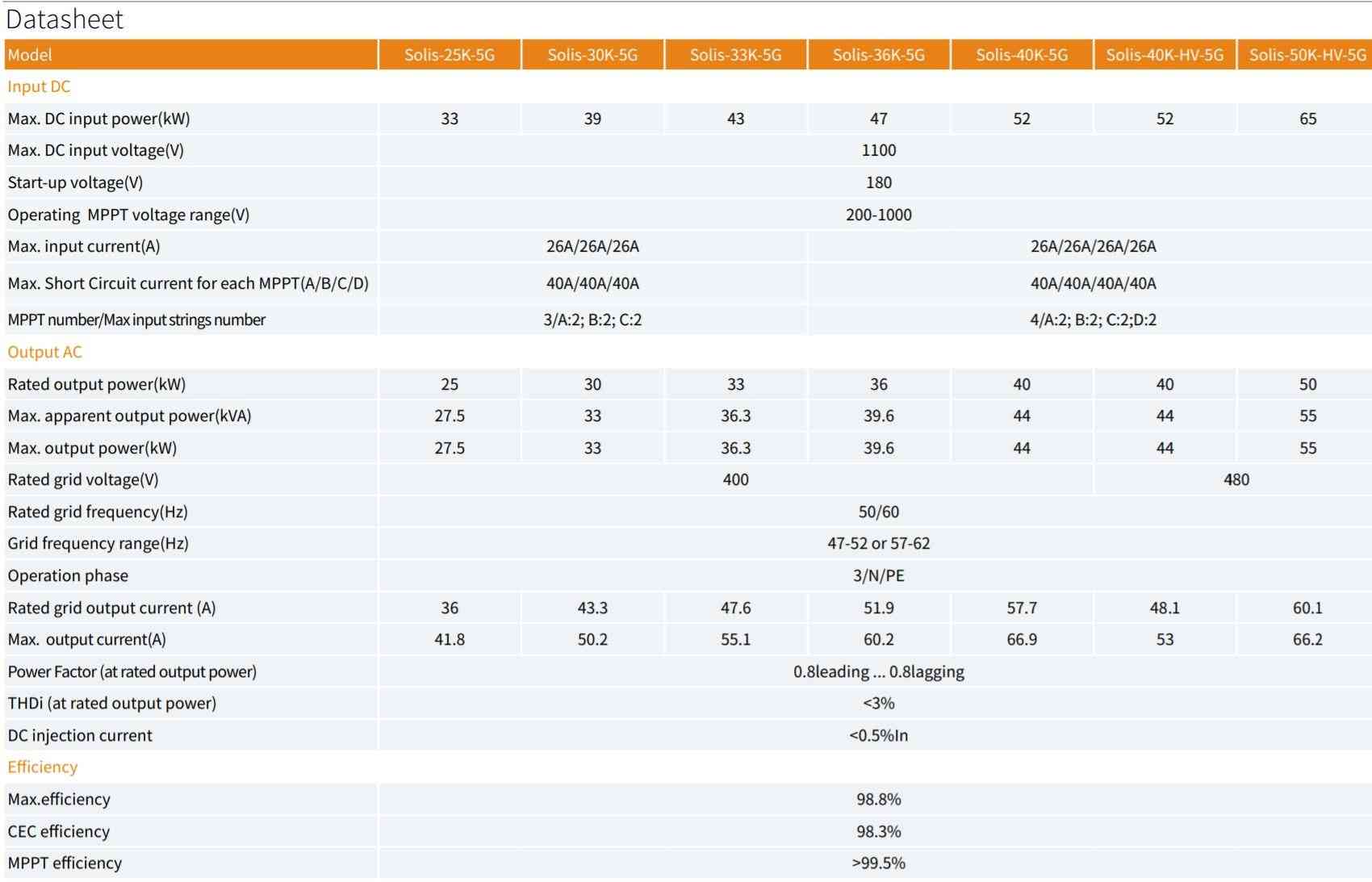

Technical Specifications
-
Part No: SOL-S5-GC30K-DC
-
Rated Power: 30,000 W
-
Phases: 3
-
Weight: 44 kg
-
Max DC Power: 45,000 W
-
Max AC Power (5 Minutes): 33,000 W
-
Surge AC Power (1 Second): 33,000 W
-
MPPT Voltage Range: 200 V – 1,000 V
-
DC Startup Voltage: 200 V
-
Max Input Voltage: 1,100 V
-
Max DC Current: 96 A
-
Max DC Inputs: 6 (MC4 connectors included: 12)
-
Euro Efficiency: 98.1 %
-
Transformer: None (transformerless design)
-
MPPT Quantity: 3
-
Integrated DC Switch: Yes
-
Warranty: 5 years
Why Choose the Solis S5-GC30K?
✔️ Designed for large-scale commercial PV systems
✔️ High-yield inverter with advanced MPPT tracking
✔️ Built-in protection for safer, more reliable operation
✔️ Future-ready with remote monitoring and updates
💡 The Solis S5-GC30K inverter is the perfect balance of efficiency, reliability, and scalability for professional solar projects.
