PylonTech PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection (H48074)
Pylontech PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection(H48074)
#2: PYL-PC-H2-BATT Storage Systems - Li-ion Battery Pack
Pylon PowerCube H2 Operation Manual
Collections not possible
To view complete Pylon kits please visit our Pylontech main page
Pylontech's Powercube has a modular design, allowing for maximum flexibility for both rack mounted and container based constructions.
PylonTech Modular Lithium-Ion Battery System
Power your high-voltage solar or energy storage installation with the PylonTech Modular Lithium-Ion Battery System, designed for flexibility, safety, and long-lasting performance. Ideal for residential, commercial, and industrial applications requiring scalable energy storage.
Key Features
-
Modular & Scalable: Configure 5–12 modules per rack, with up to 6 racks in parallel
-
High Voltage Applications: Supports flexible BMS voltage range from 240VDC to 576VDC
-
Safe & Reliable Technology: Uses LiFePO4 chemistry for long cycle life and enhanced safety
-
Comprehensive BMS Protection: Monitors charge, current, and temperature for system safety
-

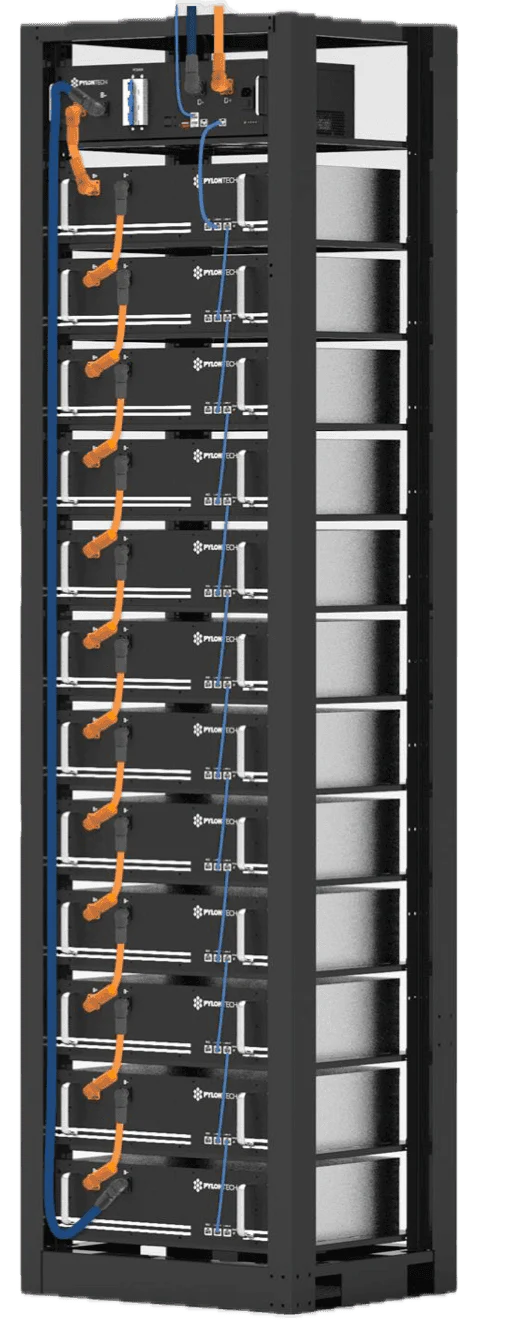

Flexible Installation Options: Rack-mounted or container-based systems
Important Information
-
Each battery module includes 1 x Communication Cable and 1 x Orange Power Cable
-

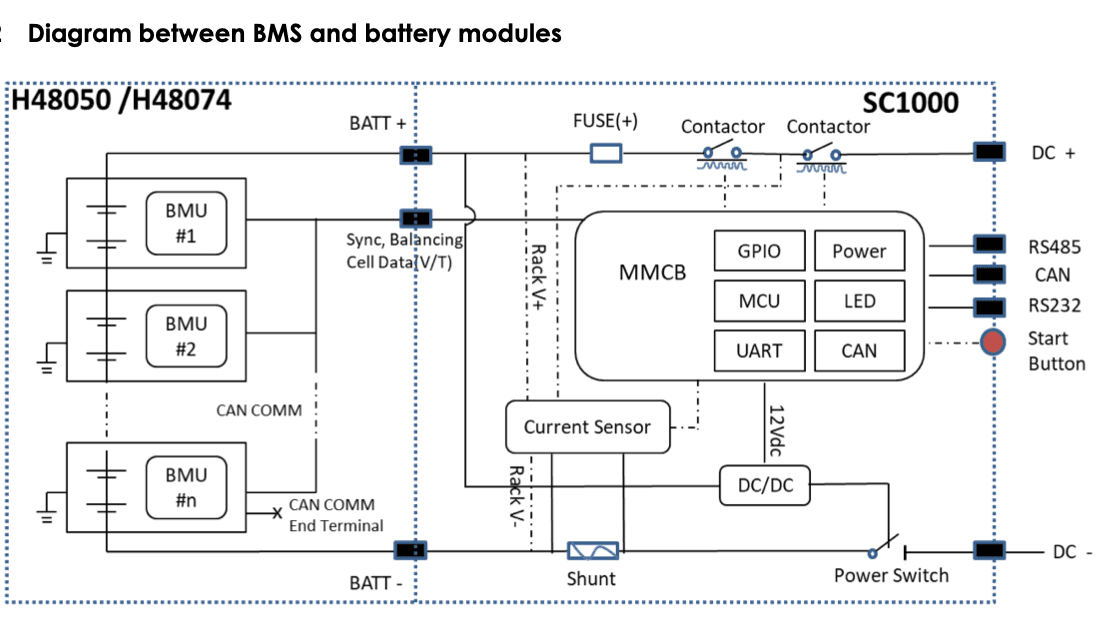

BMS Requirement: One BMS unit and external cable kit per battery stack
-
Minimum of 5 battery modules required for proper BMS operation
-
For multiple BMS units, an MBMS is required for communication and control
-
Warranty extension available via registration: PylonTech Support
-
Batteries must be installed by a certified electrician or authorised installer for warranty validity
Technical Specifications
-
Weight: 31 kg per module
-
Battery Type: Lithium-Ion (LiFePO4)
-
Nominal Energy: 3552 Wh
-
Depth of Discharge: 90%
-
Voltage: 48 V
-
Continuous Discharge Rate: 1776 W
-
Maximum Discharge Rate (5 Minutes): 3552 W
-
Surge Discharge Rate (15 Seconds): 3552 W
-
Maximum Charge Rate (5 Minutes): 3552 W
Benefits
-
Customisable Energy Storage: Build systems from 5 to 72 modules for maximum flexibility
-
Safe & Efficient: Advanced LiFePO4 technology and BMS protection reduce risk
-
Long-Lasting Performance: Designed for high cycle life and reliable operation over years
