Adjustable Portrait landscape frames for ground mount & flat roof- cost per panel

#8: ING-TPF-Kit

Portrait Installation of Triangular Adjustable Mountings

Drawings for Triangle Position

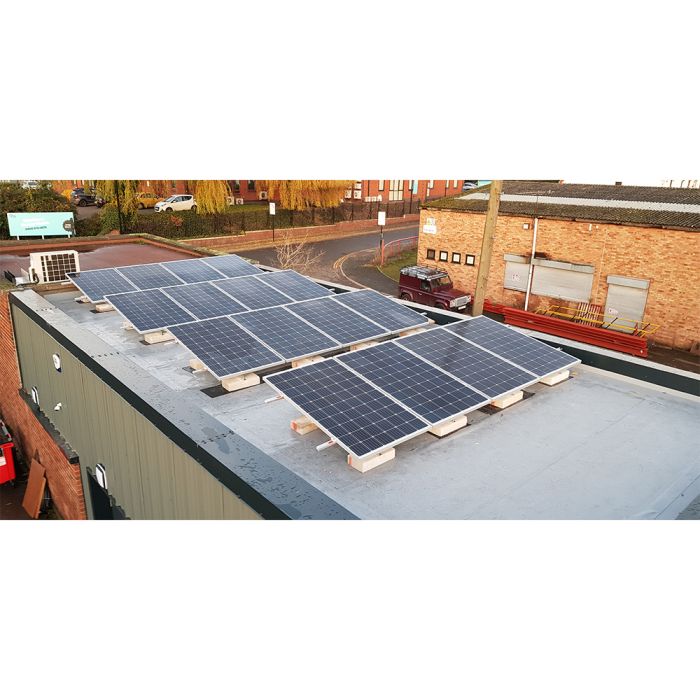

Adjustable Solar Panel Mounting System – Flat Roof & Ground Installations

The Adjustable Solar Panel Mounting System is a clever aluminum and stainless steel structure designed for flat roof and ground-mounted solar panels. With adjustable triangles, this system allows you to optimise panel inclination between 10° and 35°, maximising energy production and space utilisation.

Please note: This mounting system is not MCS certified, which is currently not required for flat roof or ground mount installations.

---

Key Features & Benefits

✔ Flexible Inclination & Optimal Performance

• Adjustable triangles allow panel angles between 10° and 35°.

• Optimises solar panel performance throughout the year.

• Adjust panels on-site to avoid shadowing and maximise the usable area.

• Can increase energy output by up to 20% with seasonal adjustments.

✔ Easy & Smart Installation

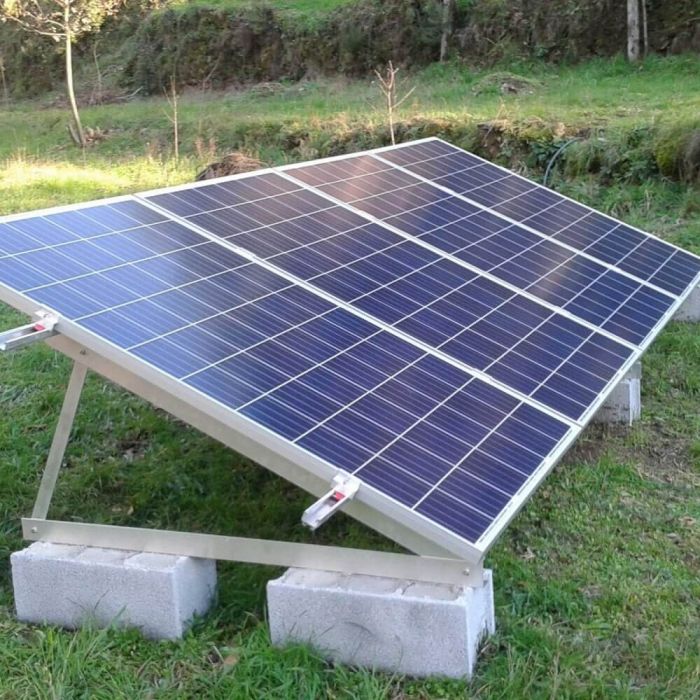

• No foundation required; solid concrete blocks are sufficient.

• Aluminium frames secured with wall plugs and screws for stability.

• Includes all components required for ballast or other securing methods.

✔ Compatible & Versatile

• Suitable for solar panels with 30mm & 35mm frames.

• Works with panels ranging from 200W to 600W, including panels over 2.2m in height.

• Minimum order: 2 mounting systems.

• Delivery time: 2-3 days.

---

Technical Specifications

• Material: Aluminium & Stainless Steel

• Inclination Angle: 10° – 35° (adjustable)

• Installation: Ballast or secured to concrete blocks

• Panel Frame Compatibility: 30mm & 35mm

• Panel Size Compatibility: 200W – 600W, up to 2.2m height

• Minimum Order Quantity: 4 units

---

Why Choose This Mounting System?

• Maximise rooftop or ground space for solar panel installation.

• Adjust panel angles for optimal sun capture year-round.

• Compatible with a wide range of panels, from small residential to large commercial systems.

• Lightweight yet strong aluminium construction for durability and long-lasting use.

---

⚡ Install smarter, optimise energy output, and make the most of your solar space with this Adjustable Solar Panel Mounting System.
